PE Pipe Rotary Scraper 63-400mm for Electrofusion

£667.50

Categories: , , |

The PE Pipe Rotary Scraper 63-400mm for Electrofusion is a high-performance surface preparation tool designed for the fast, accurate, and consistent scraping of PE and PP pipes prior to the electrofusion welding process. Suitable for pipe diameters from 63mm to 400mm up to SDR17, this fully automatic rotary scraper ensures the correct removal of the pipe’s oxidised outer layer, creating the ideal surface for reliable electrofusion joints.

Engineered for professional pipeline installation and maintenance applications, the scraper operates as an automatic hand-driven tool that securely clamps onto the outer wall of the pipe and rotates smoothly around it. During operation, the tool peels away a predefined thickness of material to achieve precise and uniform surface preparation, helping improve fusion quality and reduce the risk of joint failure.

PE Pipe Rotary Scraper 63-400mm for Electrofusion
PE Pipe Rotary Scraper 63-400mm for Electrofusion - Image 2

Product Overview

Unlike centre-mounted systems, the PE Pipe Rotary Scraper 63-400mm clamps directly onto the pipe wall, allowing it to maintain accurate scraping performance even on oval or slightly distorted pipes. This makes it especially effective for use in demanding site conditions where pipe deformation may occur during handling or storage.

The scraper is fully adjustable across its operating range, making it suitable for multiple pipe sizes without the need for additional equipment. A hardened tungsten carbide cutting blade provides exceptional durability and long cutting life, while the replaceable blade system helps extend the overall lifespan of the tool and reduce maintenance costs.

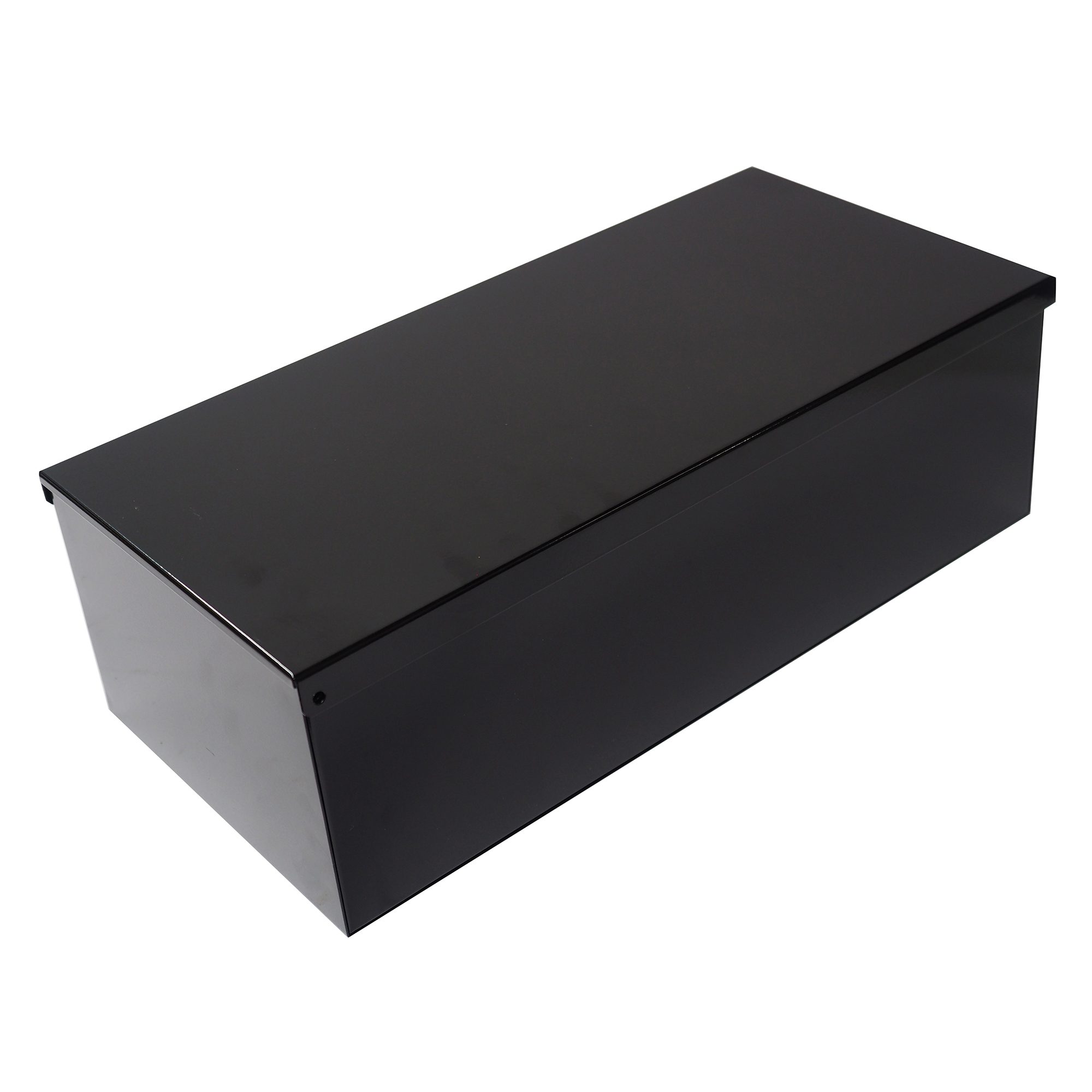

For improved efficiency on-site, the scraper features a quick-release button that allows the cutter assembly to move rapidly up and down the pipe for faster positioning and operation. Supplied in a durable steel carrying box, the tool is well protected during transport and storage.

Key Features

  • Suitable for PE and PP pipes from 63mm to 400mm
  • Designed for electrofusion surface preparation
  • Fully automatic rotary scraping action
  • Adjustable for multiple pipe sizes up to SDR17
  • Hardened tungsten carbide blade for long life
  • Replaceable cutter blade for extended tool lifespan
  • Wall-clamping design ideal for oval pipes
  • Quick-release mechanism for faster operation
  • Supplied in a protective steel carrying box

PE Pipe Squeeze Off Specification Details
Operating Range 63mm to 400mm
Operating Type Rotary, hand driven
Size

41cm x 21cm x 15cm
Weight 6kg
Operating Temperature -50 – 60 degrees C
